Air to Air Thermal Shock Chambers

R-449A

Overview of Equipment

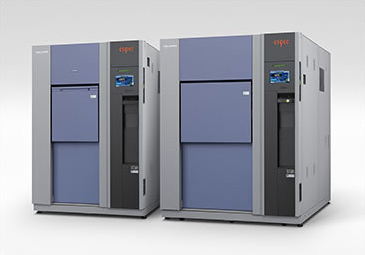

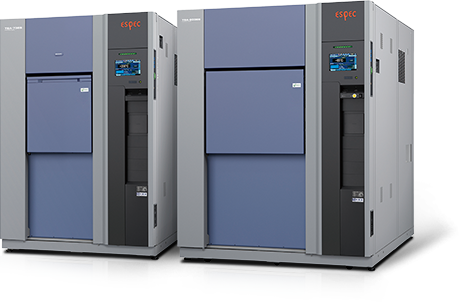

TSA series (Fixed test area type - Damper type, two/three zones)

Compliant with IEC 60068-2-14 Na and MIL-STD-883L standard tests
Test area capacity: 40L to 300L

TSA How it works (1min 26sec)

Thermal shock without moving test specimens: TSA series is designed to evaluate reliability of test specimens by rapid change of the air temperatures from hot to cold repeatedly by opening and closing of damper in a single test area. You can get accurate test results without any mechanical impact on test specimens because a test area does not move. Fixed test area type can save testing time because transfer time of the specimen from one chamber to the other is not necessary, also suitable for testing large size, heavy specimens and/or testing many small devices at one time.

Highly accurate temperature recovery: The conditioned air is pre-cooled or pre-heated beyond the setpoint, allowing quicker recovery of the desired condition.

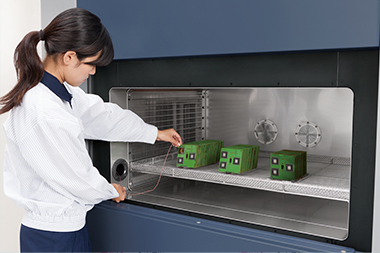

Easy access to specimens: Wiring to specimens is simple and easy, also the cables are supported and secured in its position because the test area does not move. Monitoring and data acquisition of test specimens is easy through cable port, too.

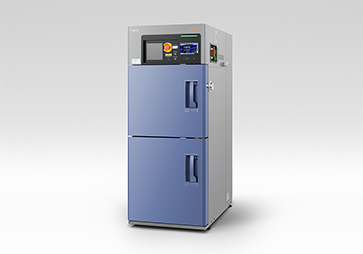

TSE-12 (Elevator type, two zones)

Compact type thermal shock
Test area capacity: 11L

Optimized size for low-volume testing: The compact thermal shock chamber answers to the need for small or low-volume specimens testing. Featuring a wide test area in a slim design, the TSE chamber offers high performances that meet severe test requirements.

Quick temperature recovery: The two zone test system (+150°C to -65°C) achieves temperature recovery time of less than 5 min, without auxiliary cooling.

Meeting International Standards: The TSE chamber achieves various tests from major international standards such as MIL, JIS…

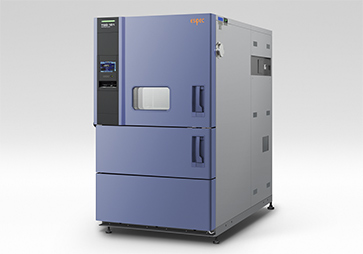

TSD-101 (Elevator type, two zones)

Large capacity, small footprint
Test area capacity: 100L

Uniform thermal stress performances: The two-zone thermal shock chambers have been developed to meet major International standards for thermal shock testing.
Achieving uniform thermal stress and outstanding temperature distribution performances, the 100L test area fits for a wide range of applications in the field of research, development, inspection, and production.

Meeting International Standards: TSD chamber achieves various tests from major international standards such as MIL, IEC, JIS.

Reduced power consumption: Energy saving is a great matter for us. The TSD chamber integrates many features, such as a refrigeration capacity control, to reduce the power consumption by 30%.

Energy Efficient Design
Network solutions: Control and monitor your chamber on-site or remotely,edit and transfer programs from one chamber to another,and receive email alerts even on your mobile.

Specifications

Please scroll horizontally to look at table below.

Series	Model	Temperature range	Inside dimensions (mm)
TSA (two/three zones)	TSA-43EL	High temp. exposure: Ambient temp. +50 to +200°C Low temp. exposure: –65 to 0°C	W240×H460×D370
	TSA-73EL		W410×H460×D370
	TSA-103EL		W650×H460×D370
	TSA-203EL		W650×H460×D670
	TSA-303EL		W970×H460×D670
	TSA-73ES	High temp. exposure: +60 to +200°C Low temp. exposure: –70 to 0°C	W410×H460×D370
	TSA-103ES		W650×H460×D370
	TSA-203ES		W650×H460×D670
	TSA–73EH HIGH PERFORMANCE MODEL	High temp. exposure: +60 to +200°C Low temp. exposure: –70 to 0°C	W410×H460×D370
	TSA–73EH HIGH PERFORMANCE MODEL		W410×H460×D370
TSE (two zones)	TSE-12-A	High temp. exposure: +60 to +200°C Low temp. exposure: -65 to 0°C	W320×H148×D230
TSE (two zones)	TSE-12-A		W320×H148×D230
TSD (two zones)	TSD-101-W	High temp. exposure: +60 to +205°C Low temp. exposure: -77 to 0°C	W710xH345xD410

Features

TSA series (Damper type, two/three zones)

Highly accurate temperature recovery: Dampers with integrated rectifying function minimize variation in exposure conditions due to specimen position within the test area. This reduces the overall test time and shortens temperature recovery time, especially during low-temperature exposure. The uniformity in test conditions brought by this innovation also contributes to improved test reproducibility and reliability.
Air Flow

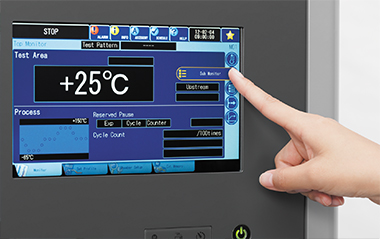

Remote monitor and control: No software required.
The chamber with Ethernet port can be connected to any PCs/smartphones/tablets via a web browser.
You can monitor, control the operation, and edit test profile remotely.

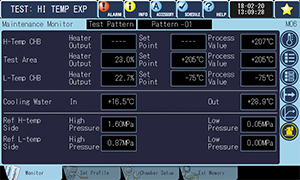

Check the equipment on the monitor screen: You can check the pressure of the refrigeration system and the temperature of the cooling water on the screen or PC connected to the network. This function helps operator to perform routine maintenance easily.

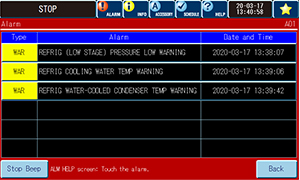

Maintenance alert notification: Preliminary signs of refrigeration circuit failure can be detected to avoid sudden interruption of testing. You can make a maintenance schedule before the chamber stops by alert on the maintenance screen and e-mail notification.
Multilingual support: The language can be switched easily on any screens.
English/Simplified Chinese/Traditional Chinese/Korean/Japanese

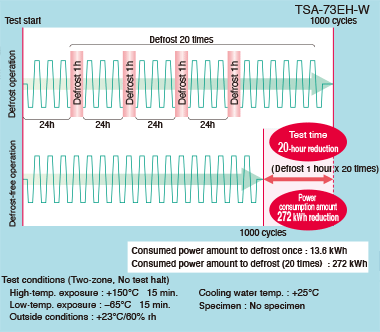

1000 cycles continuous operation: Defrost-free operation is provided as an option so 500-hour continuous operation can be performed without interruption (if test conditions are set for 15-minute exposure).

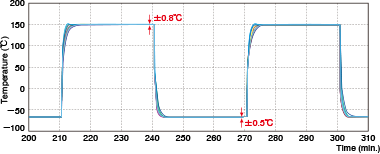

Highly accurate temperature recovery
Specimen temperature control: A single temperature sensor is attached to the specimen in the test area and the chamber is controlled by this temperature measurement.
Specimen temperature monitor with trigger function: Two temperature sensors are attached to the specimen in the test area to measure the specimen's temperature.

: 1000cycles (500-hour) test time
comparison example

The newly developed refrigeration system: To reduce thermal stress on the refrigerators and prevent corrosion in the circuit, the material and thickness of piping has been changed and this prevents refrigerant leaks.
Enhanced test halt preset function: It is now possible to program tests to halt after cycle or exposure completion. Six cycle counters are also built-in to the instrumentation so a test halt preset can be programmed for each counter.

Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode Patent JP 5204808: The new series incorporates an algorithm that calculates the minimum operation time for pre-cooling and pre-heating by constantly measuring the amount of heat required for these processes in eco operation mode. This feature can further reduce power consumption and remove the inaccuracies and hassles caused by adjustments based on preliminary experiments.
Parallel refrigerator control system for energy-saving control Patent JP 5487167: The chamber can operate at the optimal refrigeration capacity based on the controlled temperature, by switching operation between two refrigerators simultaneously or a single refrigerator. At stable low-temperature exposures, power consumption is also reduced by limiting refrigeration capacity with an electronic expansion valve.

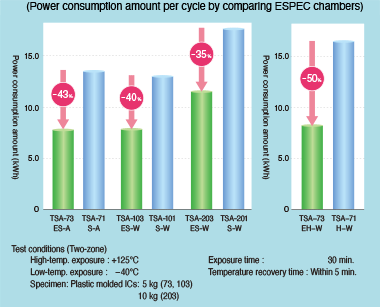

: Power consumption amount comparison example

TSE-12 (Elevator type, two zones)

Test Standard Conformance

Meets strict Mil-Std 883 1010.8 thermal cycling requirements with 4 kg.
Also conformed to IEC 60068-2-14 Na, IEC61747-5.

User-friendly Touch Panel Operation

Operation control is done via touch panel. Very easy to use, yet full-featured.

Simple Utility

The only required utility is power supply.
The cold zone is cooled by refrigeration. No need for tanks of liquid nitrogen (or cooling water supply).

Quiet Operation

Super quiet operation emitting noise of less than 60dB.

TSD-101 (Elevator type, two zones)

Remote monitor and control: No software required.
The chamber with Ethernet port can be connected to any PCs/smartphones/tablets via a web browser.
You can monitor, control the operation, and edit test profile remotely.
Short temperature recovery time: The two temperature zone system achieves quick specimen temperature recovery time (less than 15 min. for 10kg of ICs, at extreme temperature exposure).
Excellent temperature uniformity: Uniform airflow in test area allows outstanding temperature distribution.
It applies uniform thermal stress to specimen and contributes accurate test results.

Test conditions: High temp. exposure: +155°C for 30 min.
Low temp. exposure: -68°C for 30 min.
Specimens: ICs, 10 kg

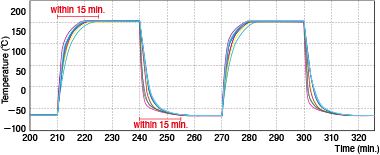

Temperature uniformity measurement method: Thermocouples were embedded in 10 ICs placed on two levels in each of the corners and in the center of a specimen basket. (Specimens with embedded thermocouples were placed beneath other ICs.); Specimen temperature recovery (example)
(based on MIL-STD-883 Method 1010.9)

Specimen Temperature Trigger (STT): TSD-101 features a STT function, monitoring the specimen to launch the exposure time or going on to following step during test. Overall test duration is reduced by eliminating pretest procedures and temperature is attained with even more accuracy.
Ambient temperature recovery feature: Outside air is introduced into the test area after test is complete, to quickly restore an ambient temperature and remove specimens safely.

Test conditions: High temp. exposure: +150°C for 30 min.
Low temp. exposure: -65°C for 30 min.
Specimens: ICs (×10)
Temperature uniformity measurement method: Thermocouples were attached to the surface of 10 ICs placed on two levels in each of the corners and in the center of a specimen basket.; Temperature uniformity performance (example)

Viewing window (option): Optional viewing window with interior lightning allows to check specimen and wiring during testing.
Easy wiring access: A cable port on right side allows easy wiring in specimen measurement during high and low temperature cycle test.

Test conditions: High temp. exposure: +150°C, 15 min. after recovery
Low temp. exposure: -65°C, 15 min. after recovery
Specimens: ICs, 10kg
Control points: Upstream of sensor positions
Measurements: Test time reductions of approximately 15 minutes per cycle compared to other ESPEC models. For 3,000 cycles testing this cuts previous test times from 4.5 months to approximately 1 month.; Test time comparison (example)

Compatible test standards

IEC 60749-25	Semiconductor devices – Temperature cycling
IEC 60068-2-14 Na	Environmental testing – Change of temperature
IEC 61747-5	Liquid crystal and solid-state display devices – Environmental, endurance and mechanical test methods
MIL-STD-883	Military standard, microcircuits, test standards
IPC-TM-650 2.6.6	Temperature cycling, printed wiring board
SAE J1879	Handbook for robustness validation of semiconductor devices in automotive applications
JASO-D902	Durability testing methods for automotive electronic equipment
EIAJ ED-4701	Environmental and endurance test methods for semiconductor devices. (General)
EIAJ ED-4702	Mechanical stress test methods for semiconductor surface mounting devices
EIAJ ED-7407	Environmental and endurance test methods for CSP, BGA package on mounting condition
