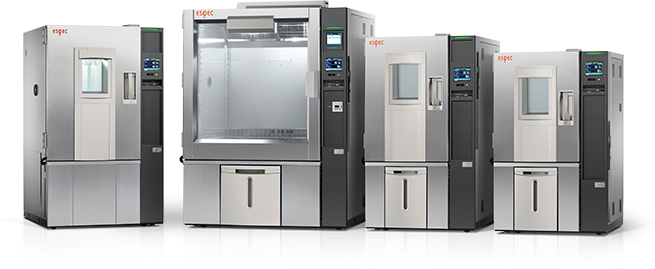

Platinous J Series Temperature(& Humidity) Chamber
Overview of Equipment
ESPEC Platinous J Series - Your best choice to cover broad reliability test applications. It offers flexible configurations to meet the needs of today and tomorrow.
- New refrigeration system "Smart R&D System" (patent no. 5514787)
- An ESPEC original refrigerator system that delivers the high levels of energy savings and performance
- Make your own chamber with a variety of options
- Extended choice of options fitted to your testing. Select your chamber from the door, refrigeration system, instrumentation, language and so much more! Over 60 options to choose from; order only what you need.
- Network solutions
- Control and monitor your chamber on-site or remotely, edit and transfer programs from one chamber to another, and receive email alerts even on your mobile.
Lineup
Please scroll horizontally to look at table below.

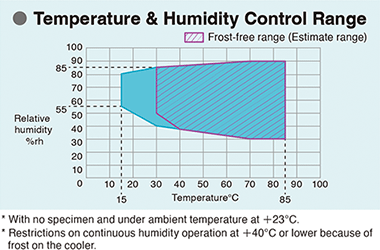

Model | Temperature | Humidity | Inside capacity |
Cleanliness | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Temperature (& Humidity) Chamber | PRTemperature & Humidity Chamber |

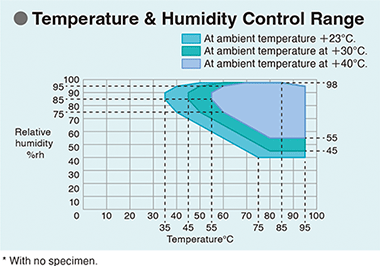

-20 to +100℃(-20 to +150℃-20 to +180℃) | 20 to 98%rh | Type1:120L Type2:225L Type3:408L Type4:800L |
||||||
PLLow Temperature & Humidity Chamber |
-40 to +100℃(-40 to +150℃-40 to +180℃) | |||||||||
PSLUltra Low Temperature & Humidity Chamber |
-70 to +100℃(-70 to +150℃-70 to +180℃*) | Type2:306L Type4:800L |
||||||||
PHPHigh Temperature & Humidity Chamber |
ambient temperature +10 to +100℃ |
40 to 98%rh | Type2:219L Type3:398L Type4:784L |
|||||||

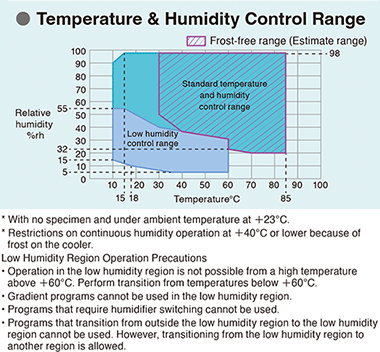

PDRLow Humidity Type Temperature & Humidity Chamber |

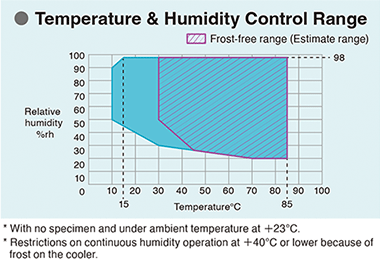

-20 to +100℃ | 5 to 98%rh | Type3:408L Type4:800L |
|||||||
PDLLow Humidity Type Low Temperature & Humidity Chamber |
-40 to +100℃ | |||||||||
PCRClean Temperature &Humidity Chamber |
-20 to +100℃ | 30 to 90%rh | Type3:312L | Class5 | ||||||
Temperature Chamber | PULow Temperature Chamber |
-40 to +100℃(-40 to +150℃-40 to +180℃) | Type1:120L Type2:225L Type3:408L Type4:800L |
|||||||
PGUltra Low Temperature Chamber |
-70 to +100℃(-70 to +150℃-70 to +180℃*) | Type2:306L Type4:800L |
||||||||
* Applicable only to |
Features
New network controller allows monitoring and programming the chamber via any PC, mobile devices on your network.
- Tabbed interface

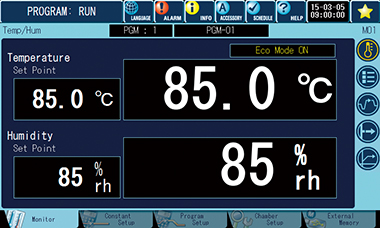

- High resolution 7inch LCD. Tabs along the bottom of the screen can be used to navigate to other screens quickly and easily. A "slide label" feature displays the name of an navigation destination when you touch an icon with your finger, for user-friendly navigation between screens. You can change the display language to your preferred language at any time.
- N-instrumentation

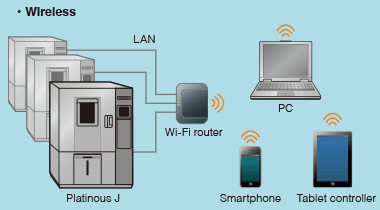

- Operation control and monitoring from web browser
- Ethernet connection enables to control the chamber operation and modify the settings online (web browser). You can operate from your PC, smartphone or tablet.
- Network
- Test program downloads
- Program patterns based on main international standards are now available on ESPEC’s reliability testing website, TEST NAVI. Download the desired program patterns from your PC, and transfer it to your chamber via USB flash drive.
*Registration (free) to the TEST NAVI website is required to download programs. - E-mail alert
- You can receive email to alert chamber troubles.

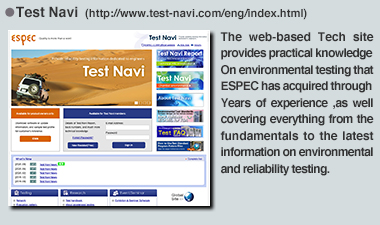

- Test Navi

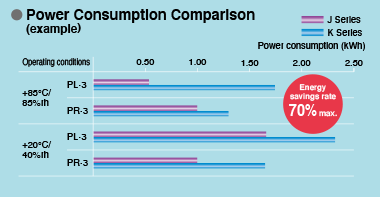

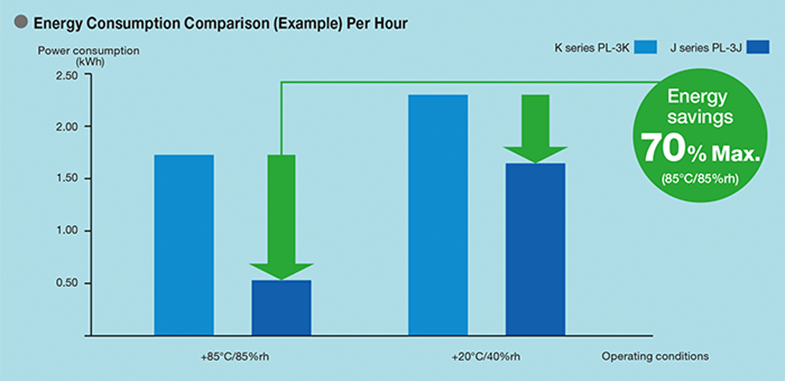

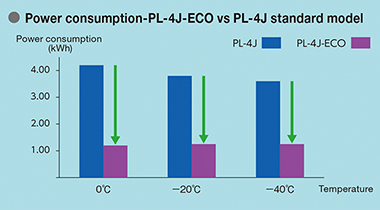

The most energy efficient ever: Energy savings of up to 70% over previous models.
- Technology allying high performance and energy-savings
- Thanks to various means of refrigeration control, and optimization of the heating/ cooling capacities via the N- instrumentation, our chambers can achieve up to 70% energy-saving.

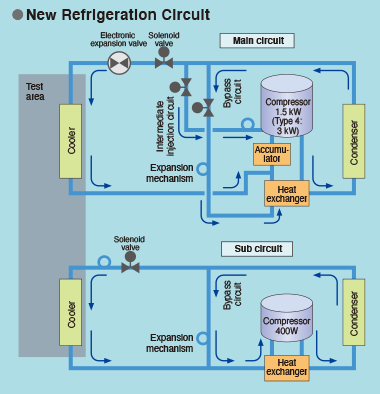

- New refrigeration circuit
- Extended water flow control and minimum refrigeration capacity are achieved thanks to our "Smart Refrigerator & Dehumidifier system". This technology allows reducing electrical consumption while creating a very accurate environment inside the chamber.
- Sub-circuit for further savings
- Models equipped with a sub-refrigerator achieve great eco operation. The refrigeration circuit switches between refrigerators to optimize the chamber consumption according to the minimum required power.
Make your own chamber with a variety of options
- A variety of options to modify flexibly
- Create your "just-fit" chamber by ordering only what you need. To take door as an example, choose a door with or without window, with or without hand-in ports, the number of hand-in ports, etc. Numerous options are also available as retrofit kits.

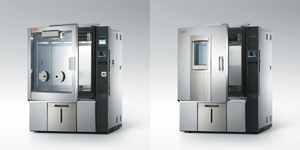

- Wide-view door compatibility extended (Option) PL/PR/PU-2,3,4
- Dew controlled all-glass door is ideal for physical observation; now available for several models. Multi-layer EC glass able to withstand temperatures from -40 to +120°C. Hand-in ports on the glass can be an optimum choice (patent no. 4137894)
- Door variation
- Electrochromic viewing window
- Switches opacity to transparent state by chamber lamp. The test area can be observed while the lamp is on.
- Lamp on
- Lamp off

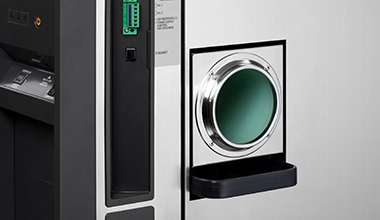

- Cable ports on both sides (option)
- Possible to install a cable port on the right side (option), thanks to a redesign of the internal space (machinery, customized space, etc.)
- Right side cable port (option)

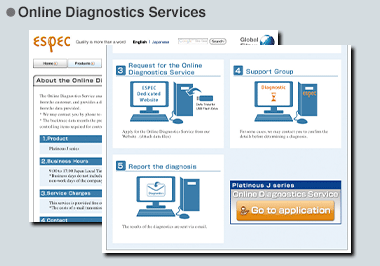

- Trace-back function and online diagnostic service
- A feature in the controller allows to automatically save test data tracing back just before the chamber error occurs. The test data can be exported to USB flash drive.
Send data to the Customer Support Desk via our website for effective and quick troubleshooting.
Save time and money by minimizing on-site visits and analysis time.
