Web Integrated Network System
ESPEC ONLINECORE

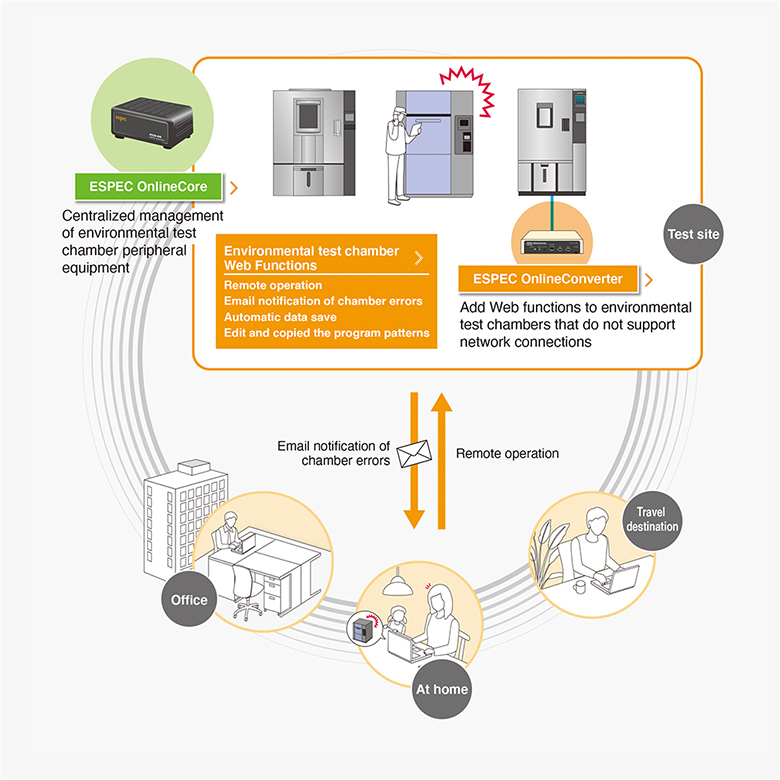

Overview of Equipment
- Centralized management of environmental test chamber peripheral equipment
-

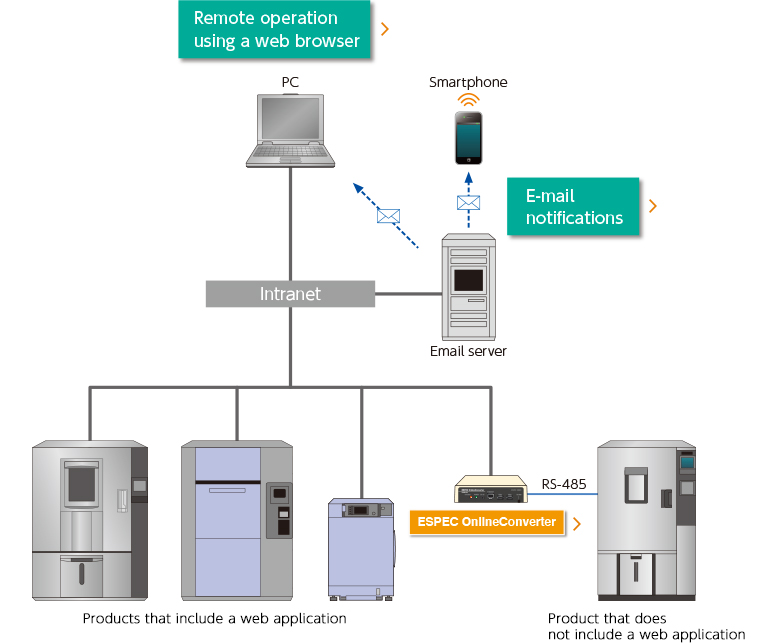

The operating status of multiple chambers can be quickly ascertained via a web browser just by connecting to an Intranet environment.

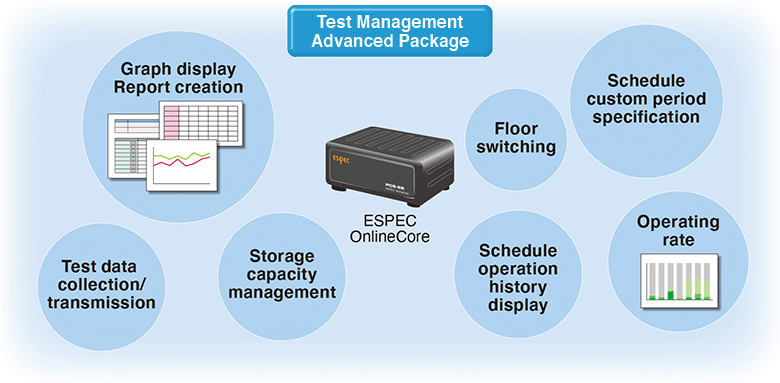

ESPEC OnlineCore has standard and optional functions.
ESPEC OnlineCore function list
Central management monitor
Up to 100 environmental test chambers and peripheral equipment units can be connected.

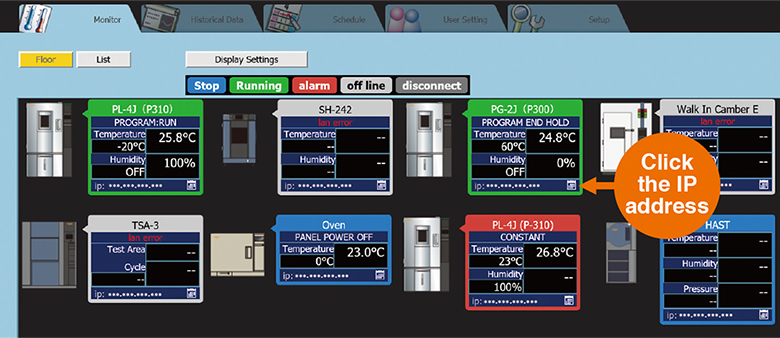

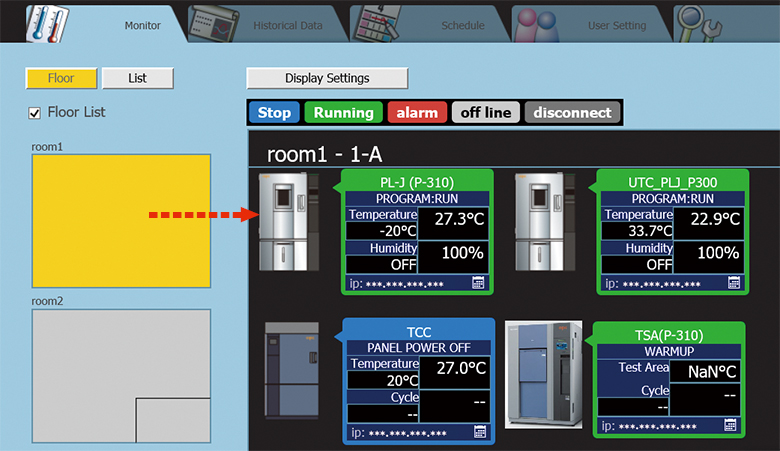

Floor display

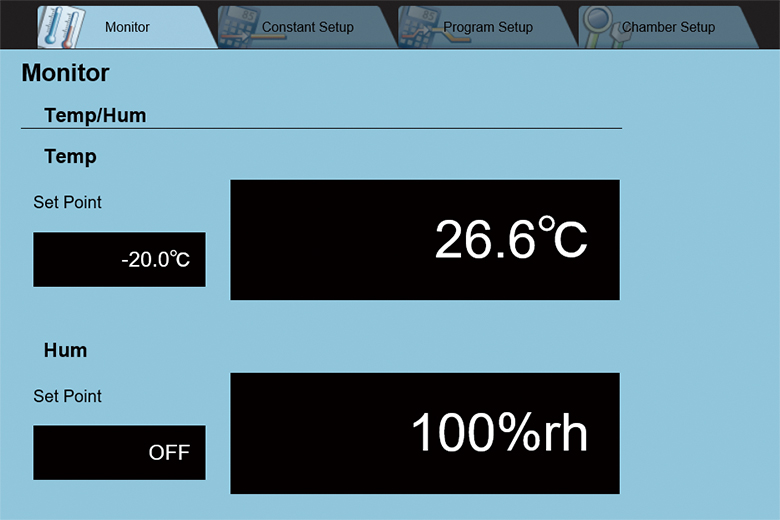

Open chamber webpages (by clicking their IP addresses).
The layout, display format, sizes, and other characteristics of the connected equipment on the monitor can be changed.

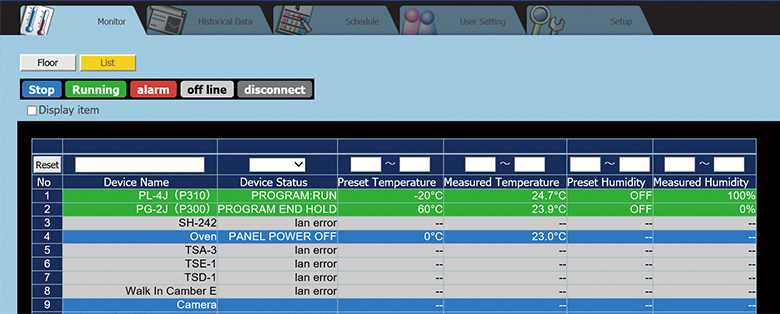

Change between a floor display and list display.
Floor display

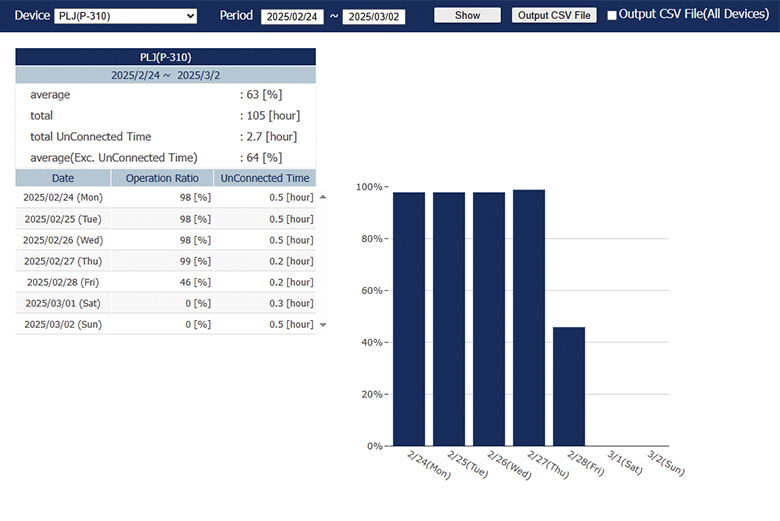

- Automatic aggregation of chamber operating rate
-
- Understanding the operating status makes it easier to plan for chamber expansion or dismantling.
- The operating rate and operating time for the selected period are calculated automatically for each chamber, and CSV output allows data for all connected equipment to be exported.
- Save the long duration test data
- The storage capacity is enough for around 10 years of data from 100 chambers. * This may vary depending on the data collection cycle and other conditions.

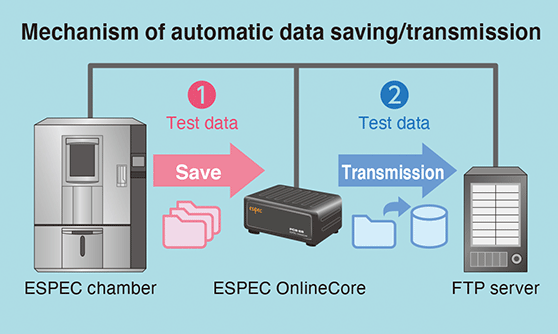

- Automatic transmission of test data
-
- Test data is automatically transmitted to the specified FTP server and saved as backup for redundant management. * The FTP server must be prepared by the customer.
- Conforms to data management (collection, storage) in the ISO/IEC17025 requirements.

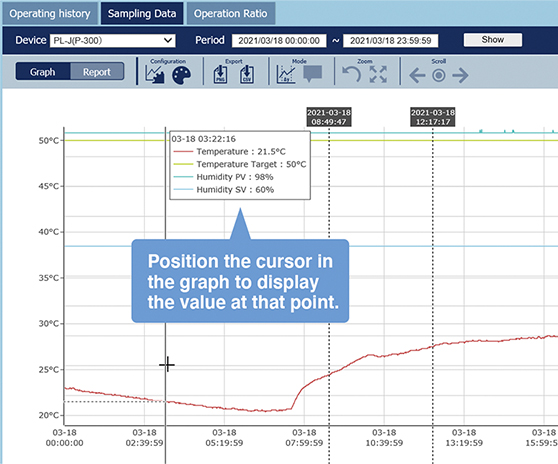

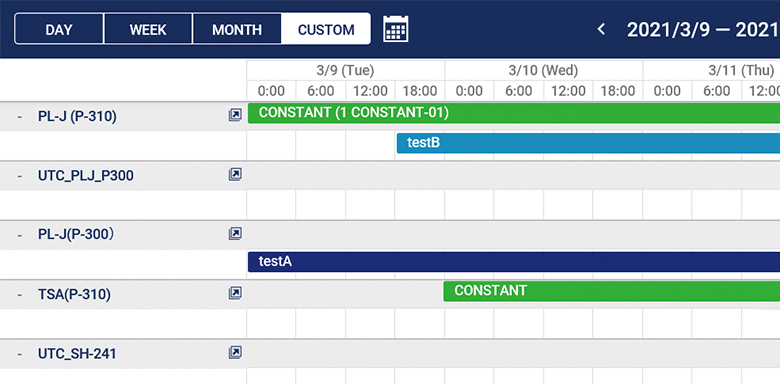

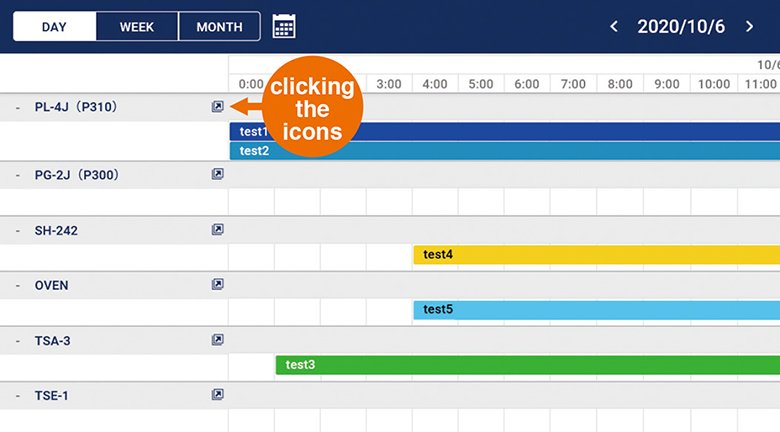

- Create test schedules, graph displays of any test period from the operation history, and test reports.
OnlineCore applicable product lineup
| Product name | Model |
|---|---|
| Temperature (& Humidity) Chamber Platinous J Series | PR, PL, PU, PSL, PG, PHP, PDR, PDL, PCR, PL-ECO, PU-ECO |
| Walk-In Temperature (& Humidity) Chamber E Series | TBE, TBL, TBR, TBF, TBU, TBUU, EBE, EBL, EBR, EBF, EBU, EBUU |
| High-Power Temperature (& Humidity) Chamber (N Instrumentation) | ARG, ARL, ARS, ARU, ARSF, ARGF |
| Bench-top Type Temperature (& Humidity) Chamber | SH/SU-□□2 |
| Constant Climate Cabinet | LH/LHL/LHU/LU-□□4 |
| Compact Ultra Low Temperature Chamber | MC-712, MC-812 |
| Faster Temperature (& Humidity) Chamber | SMG/SML/SMS/SMU-21 |
| Rapid-Rate Thermal Cycle Chamber | TCC-151 |
| Highly Accelerated Stress Test System | EHS-□□2/□□2M/□□2MD |
| Stability Test Chamber | CSH-□□2, CSH-□□2HG |
| Stability Test Chamber | CWH |
| Product name | Model |
|---|---|
| Low Temperature (& Humidity) Chamber | CRH-□□2 |
| Thermal Shock Chamber TSA Series | TSA-□□3 |
| Thermal Shock Chamber | TSD-101-W |
| Compact Thermal Shock Chamber | TSE-12-A |
| Liquid to Liquid Thermal Shock Chamber | TSB-22, TSB-52 |
| Vacuum Oven | LCV-234, LCV-244 |
| Electrochemical Migration Evaluation System | AMI |
| Conductor Resistance Evaluation System | AMR |
| Web Manager | WMA-STD, WMA-TS, WMA-Multi |
| RS-485 LAN Converter | CONV-L4 |
| Web Support | PN5-L4 |
| ESPEC OnlineConverter | PN5-CN |

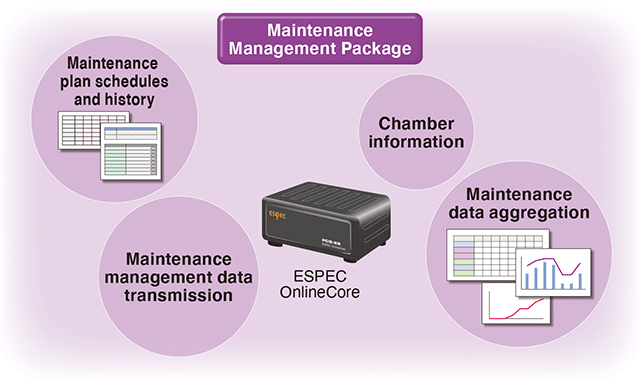

Maintenance Management Package
Reduce various parts of chamber management work and increases operation efficiency
Together with the test management functions, centrally managing chamber maintenance data with ESPEC OnlineCore makes it possible to efficiently check the required information when necessary.

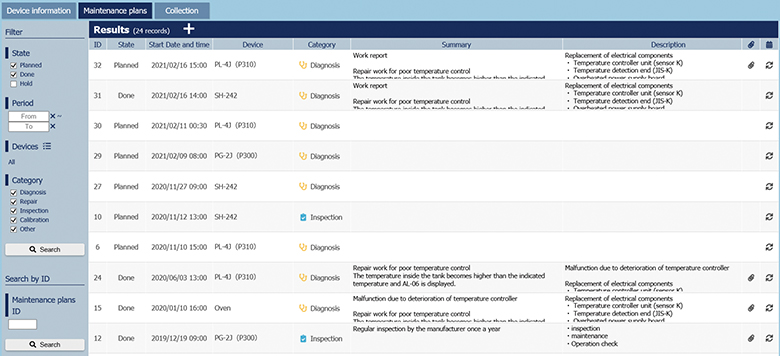

- The list shows the registered schedules and records of diagnoses, repairs, inspections, calibrations, etc.

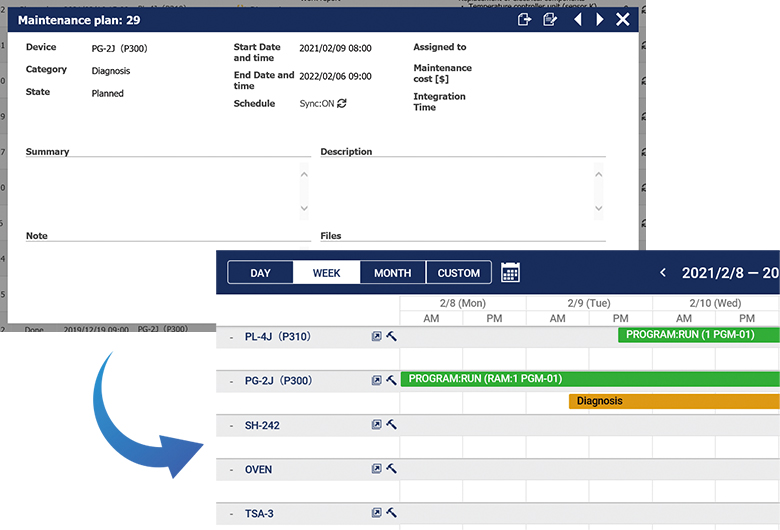

Maintenance plan list screen
- Enter a maintenance plan to display its linked schedule.

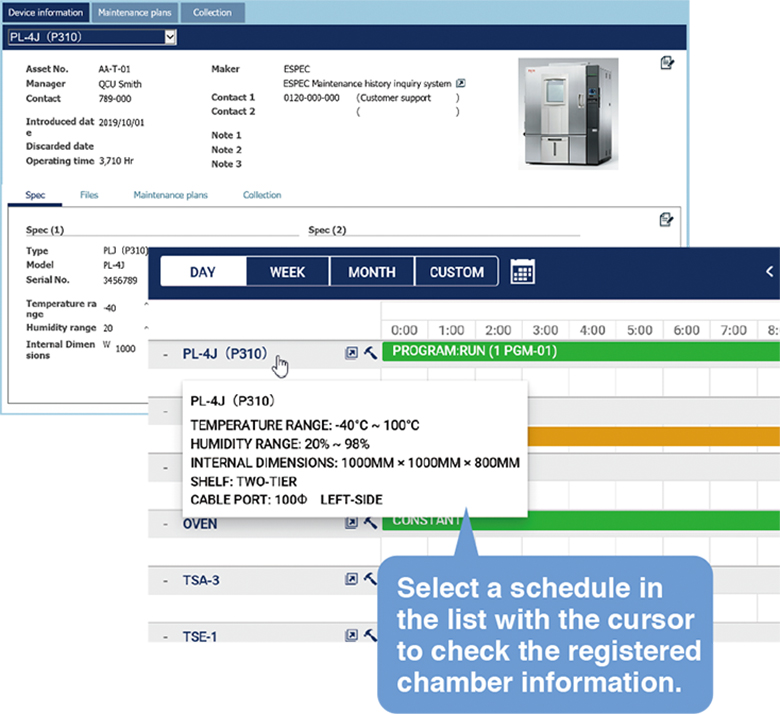

Linked schedule
- Register management information and chamber specifications. Check the temperature and humidity range as well as the test area size when selecting the chamber.

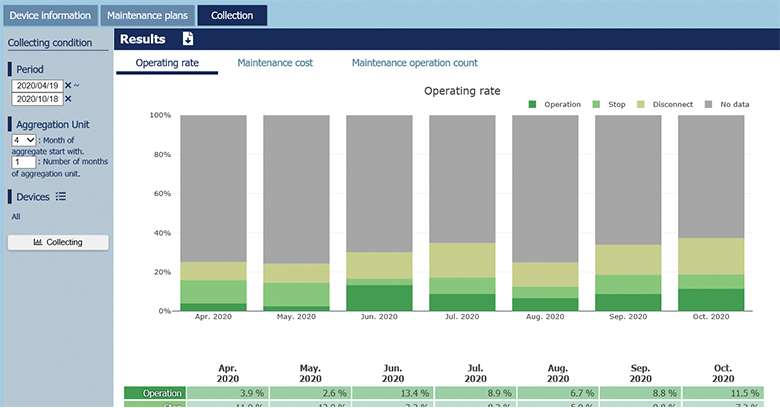

Operating rate aggregation for all chambers

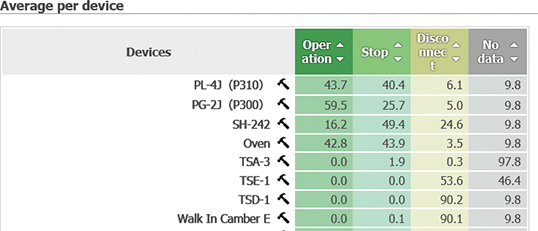

Averages for each chamber
- Aggregate the costs registered to the maintenance plan.

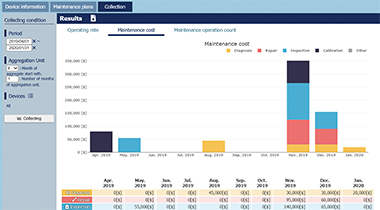

Cost aggregation for all chambers

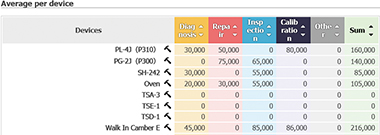

Costs for each chamber
