Weather Simulation Chamber
Overview of Equipment

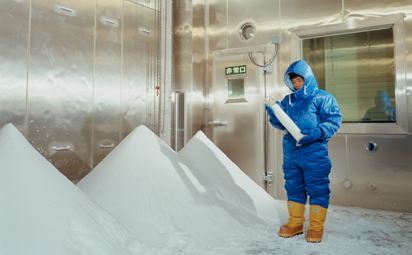

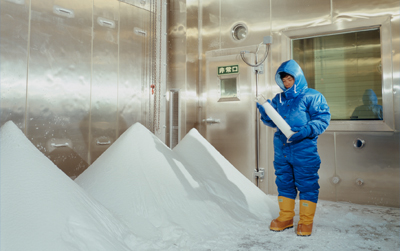

Reproducing various environmental factors
The environmental conditions required by weather simulation chambers vary depending on the research objective and whether the subjects of research are humans, animals, plants, or industrial products. The ESPEC Weather Simulation Chamber can be used to reproduce one or a combination of weather environmental factors, including temperature, humidity, air pressure, rain, fog, snow, sunlight, wind, and air composition. In addition to normal environments, this system can create the optimal weather environment for the research objective and subject, whether it is scorching desert, a frigid South Pole, underwater, high altitude, or stratosphere environment.
Please scroll horizontally to look at table below.
Normal environment (living environment) | Extreme environment | |
---|---|---|
Temperature | -20 to +45°C | -50 to +50°C |
Humidity | 30 to 90%RH | 5 to 100%RH |
Rain | 0 to 100mm/h | - |
Sunlight | 0 to 1000kcal/m²h | - |
Wind | 0 to 2.5m/s | - |
- Sleep, Wake, and Biorhythm Research and therapy system
- The Sleep, Wake, and Biorhythm Research and therapy system performs basic and clinical research on sleep and biorhythm disorders as well as depression and other mood disorders.
-
- Neurophysiological research on human sleep
- Endocrinological and chronobiological research on human circadian rhythm mechanism
- Measurement of the effects of light on sleep, circadian rhythm, and mood
- Evaluation of the effects of physiological functions of psychotropic drugs
- Behavioral and clinical research using polysomnography
- Simultaneous monitoring of movement disorders and conversion disorders using polygraph and video
- Development of chronobiological treatment of sleep and biorhythm disorders as well as depression and other mood disorders

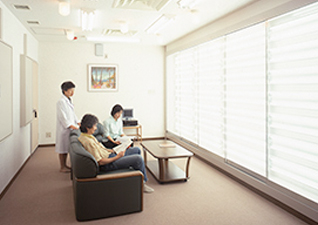

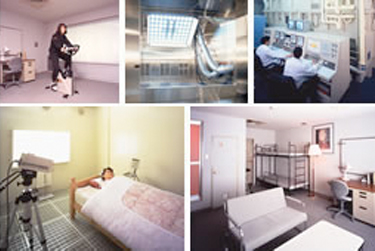

Living module
Sleep electroencephalography module
Control room
Specifications
Please scroll horizontally to look at table below.
Performance
Temperature and humidity range | +22°C/60%RH |
---|---|
Temperature and humidity adjustable range span | ±1°C/±5%RH |
Allowable load | 5 people/ventilation of 150 m³/h |
Shield | 40dB (500k to 200MHz) |
Sound insulation | D40dB |
Illuminance |
|
Noise level | 55dB (A) At the center of the living module room FL + 1000 mm |
Please scroll horizontally to look at table below.

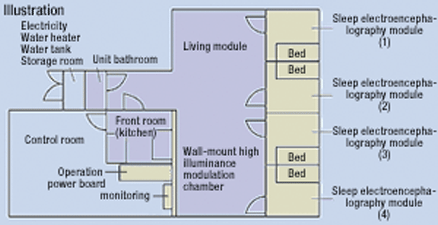

Construction
Living module | Approx. 10130 (W) × 3175 (D) × 2500 (H) mm, 1 room |
---|---|
Sleep electroencephalography module | Approx. 2420 (W) × 2100 (D) × 2100 (H) mm, 4 rooms |
Front room | Approx. 2300 (W) × 2275 (D) × 2100 (H) mm, 1 room |
Air conditioner | General-purpose package air conditioner |
Operation power board | Material: cold rolled steel plate Installed equipment: temperature and humidity setting device, temperature and humidity recorder, etc. |
Please scroll horizontally to look at table below.
Accessories
Living module | Chamber lamp, unit bathroom, refrigerator, microwave oven, kitchenette, TV antenna terminal, heat sensor, indoor security switch, emergency buzzer |
---|---|
Sleep electroencephalography module | Chamber lamp, TV camera, bed, emergency buzzer, heat sensor, indoor security switch, video monitor, ground terminal, ventilation fan |
