Highly Accelerated Stress Test System (HAST Chamber)
Overview of Equipment
The Highly Accelerated Stress Test Chamber has been primarily developed to conduct bias testing which applies constant voltage and signals. The standard equipment features two control modes: [unsaturated control] and [wet saturated control], while the M-type chamber additionally offers a [wet and dry bulb temperature control] mode.
The M-type chamber conforms to the IEC60068-2-66 standard.

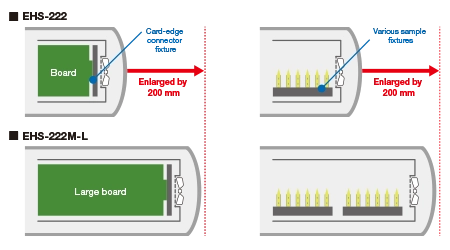

- Optimized Strength & Maximum Test Area
- Prevention of dew condensation and wetting of specimens
- Air-circulating fan for high-accuracy testing

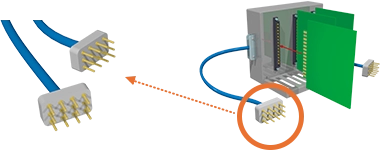

- Expandable Up to 72 Pins – Color-Coded Terminals for Easy & Accurate Wiring.
- Reliable Protection & Control – Ensuring Safe Power Supply to Specimens.
Specifications
Please scroll horizontally to look at table below.
| Model | Temperature, humidity and pressure range | Inside/Outside dimensions(mm) |
|---|---|---|
| EHS-212 | ＋105.0 to ＋142.9℃ / 75 to 100％rh / 0.020 to 0.196MPa（Gauge） |
φ294×D318 / W640×H1483×D850 |
| EHS-212M | ||
| EHS-212MD | φ294×D318×2 / W760×H1796×D1000 |
|
| EHS-222 | φ394×D426 / W740×H1553×D1000 |
|
| EHS-222M | ||
| EHS-222MD | φ394×D426×2 / W860×H1796×D1000 |
|
| EHS-412 | ＋105.0 to ＋162.2℃ / 75 to 100％rh / 0.020 to 0.392MPa（Gauge） |
φ294×D318 / W640×H1483×D850 |
| EHS-412M | ||
| EHS-412MD | φ294×D318×2 / W760×H1796×D1000 |
Air-HAST
Reproduction of near-constant temperature and humidity
testing environment with Air-HAST (option for M/MD type only)
Depending on the specimen, not only water steam but also oxidation and other specimen surface conditions can cause failure.
By leaving air in the test area, the Air-HAST function adds air to the high-temp, highhumidity, and pressurized environment for effective accelerated testing of specimens for which the oxygen in air affects degradation, such as with surface oxidation. (Acceleration may not be seen for some specimen.)
- Whisker humidity-resistance evaluation testing (Japanese patent No. 5066143)
- Evaluation examples for whisker evaluations of mounting boards are limited. One of the main reasons for this is because the testing time can be as long as 1000 or 3000 hours.
To shorten these testing times, ESPEC conducts lead-free solder whisker evaluation of mounting boards using Air-HAST. The results confirmed accelerated effects with testing at 85°C and 85%rh humidity.
Please scroll horizontally to look at table below.
| Accelerated testing examples for whisker evaluation | ||
|---|---|---|
| Temperature cycling test | -40°C ↔ +85°C | 3000 cycles |
| High temperature and high humidity test | +55°C / +85%rh | 3000 hours |
| +85°C / +85%rh | 1000 hours | |
| Air-HAST | +110°C / +85%rh | 200 hours |
