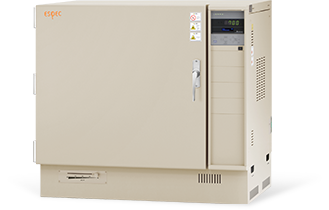

Industrial Ovens Ultra-High Temperature Chamber
Overview of Equipment

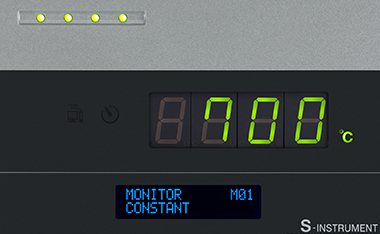

Temperature control up to +500°C or +700°C
2 models available depending on applications: up to +500°C for high temperature life tests or heat resistance tests; up to +700°C for ceramics baking process, or heat resistance tests for highly functional glass and hybrid polymer materials.
The +700°C-type features ceramic fiber and aluminum foil for heat insulation. Various safety mechanisms and protection devices are equipped as standard.
Specifications
Please scroll horizontally to look at table below.
| Model | Temperature range | Inside/Outside dimensions(mm) |
|---|---|---|
| STPH-102 | Ambient temp. +20°C to +500°C | W450×H450×D450 / W1190×H1110×D795 |
| STPH-202 | W600×H600×D600 / W1340×H1260×D945 |
|
| SSPH-102 | +100°C to +700°C | W450×H450×D450 / W1190×H1110×D795 |
| SSPH-202 | W600×H600×D600 / W1340×H1260×D945 |
- * Specify M-instrumentation for temperature programs with three or more steps.
Features
- Saving-energy insulated structure (SSPH only)
- Ceramic fiber and aluminium foil are used as insulation materials. It increases effective insulation and prevents heat loss, thus saving energy.
- A Double seal gasket configuration (SSPH only)
- A gasket made of stainless steel fiber and a leaf spring are used to form a double seal between the door and the chamber. Prevents heat radiation on door.
- Door equipped with a single-action lever
- The door can be firmly locked by an easy-to-use single-action lever.
