Dry Heat Test

Test summary/features

Dry heat testing is the basic test type used for development, quality assurance and reliability tests. It includes heat-resistance testing and material deterioration testing of specimens such as electronic components in high-temperature environments.
ESPEC's test facilities have equipmesupporting maximum temperatures of +300°C and +700°C.
Vacuum ovens and equipment with safety doors (explosion vents) are also available, enabling use of the test facilities for research and development of production technology and test technology.

Test examples
  • Checking high-temperature characteristic of electronic parts and compact electronic devices
  • Durability testing and life testing done by evaluating resistance to heat and high temperatures
  • High-temperature firing treatment
  • Drying tests of various materials
  • Preservation testing of packaged test samples
  • Heat treatment and aging processes of manufactured products
  • Checking production line heat treatment effects, research/development of production technologies
Test equipment particulars

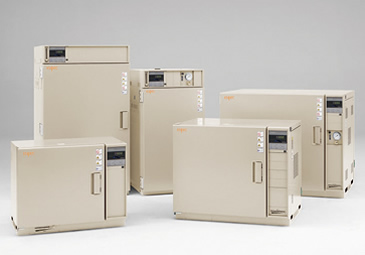

  • Temperature Chamber Series (installed at ESPEC test facilities)

    Test chambers supporting applications ranging from high-temperature testing to heat treatment on production lines. ESPEC has various models supporting several different maximum temperature settings (+300, +500 and +700C) and test area sizes (internal capacities) in demand.
    Contact the facilities individually for detailed specifications.

Temperature Chamber Series (installed at ESPEC test facilities)

Temperature chambers
Temperature range Room temperature +20 to 300°C +100 to
+700°C
Internal dimensions (mm) W600 W800 W1000 W600
H600 H800 H1000 H600
D600 D800 D1000 D600

* Vacuum ovens and equipment with safety doors (explosion vents) are also available.
