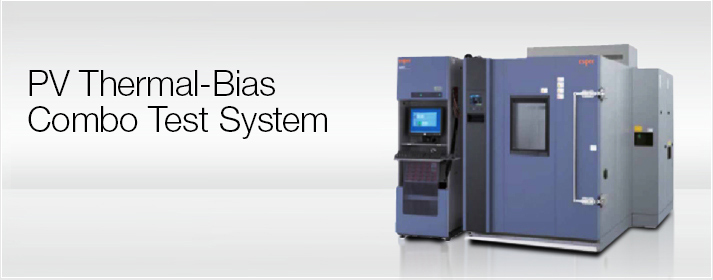

PV Thermal-Bias Combo Test System

Overview of Equipment

Thermal cycling (TC) test system that enables application of STC peak output current

Under the solar cell module standard JIS C 8990 2009, an STC peak output current must be applied at +25°C or higher during thermal cycling (TC) testing.

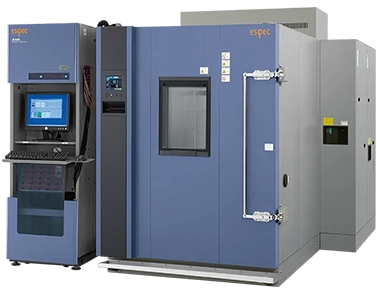

The solar cell module thermal cycling (TC) test system combines a large capacity temperature and humidity chamber, which ensures testing safety and ease of panel setting, and a current load measurement system, which applies an STC peak output current equivalent and controls the entire system, thereby enabling easy thermal cycling (TC) testing.

Thermal cycling test（TC）test

Features
  • Equipped with a fixed rack inside the chamber that can load 10 PV modules, and enables application of a current load equivalent to the STC peak output current at a temperature exposure of 25°C or higher.
  • Load a constant current and monitor the output voltage and current value. In addition, when the output voltage exceeds the preset determination threshold voltage, the current application stops only for that sample.
  • Equipped with 10 temperature sensors for measurement of the surface temperature of each module, this system measures and records the module surface temperature in addition to the control temperature inside the test area.
  • Comes with 3 test modes.
    • When one module reaches 25°C, current is applied to all modules.
    • When all modules reach 25°C, current is applied to all modules.
    • Current is applied separately to modules when the temperature of each module reaches 25°C.
  • Equipped with a voltage application override function that operates when the door is opened and closed. It uses a door with locking function and interlock, which prevent accidental opening of the door during current load testing.
Standard test
  • JIS C 8990: 2009
    Thermal cycle testing (IEC 61215 10.11)

Specifications

Measurement system part
Model PV-TC-10
Application current range Current range 0 to 10 A*
Voltage range 0 to 100 V*
Current output precision ±12 mA
Monitor value Voltage, output current, surface temperature
Number of channels 10 channels (power supply specifications per 10 units)

* Voltage and current ranges can be changed upon request.

Temperature and humidity chamber
Model FD Series
Temperature and humidity control range -40°C to +100 °C / 40% to 95%rh
Temperature and humidity distribution ±1.5°C / ±5%rh
CAUTION

Use the following options if there is a possibility that acetic acid or phthalic acid may be generated from the specimen during operation at high temperature and humidity.

Options
  • Stainless steel evaporator
  • Drain pipe stainless steel specifications
