Advanced Battery Tester
Overview of Equipment
All-in-one secondary battery charge-discharge evaluation system

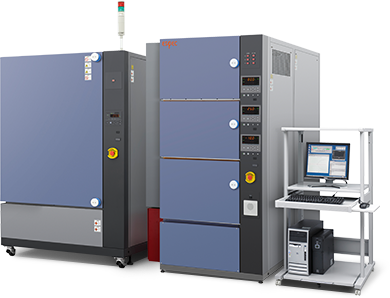

The Advanced Battery Tester is a completely new battery charge-discharge tester with an integrated charge-discharge system and chamber. This system has four functions (performance test, endurance test, temperature characteristic test, and impedance evaluation) to make the most of the battery characteristic evaluation.
Main specifications (example)
Please scroll horizontally to look at table below.
| Model | ADBT-5-1 | ADBT-5-10 | ADBT-5-50 | ADBT-6-400 | |
|---|---|---|---|---|---|
| Test area | Temperature control range |
-40°C to 100°C | |||
| Temperature uniformity | ±1.5°C | ||||
| Output voltage |
Setting ranges |
0 to 5000 mV (5V) | 0 to 6000 mV (6V) |
||
| Output accuracy |
±0.1% of F.S. | ±0.03% of F.S. | |||
| Output current |
Setting ranges |
0 to 1 mA 0 to 10 mA 0 to 100 mA 0 to 1000 mA(1A） |
0 to 100 mA 0 to 1000 mA(1A） 0 to 10000 mA(10A） |
0 to 500 mA 0 to 5000 mA(5A） 0 to 50000 mA(50A） |
0 to 40 A 0 to 400 A |
| Output accuracy |
±0.1% of F.S. | ±0.03% of F.S. | |||
| Output power |
Setting ranges |
0 to 5 W | 0 to 50 W | 0 to 250 W | 0 to 2000 W |
| Output accuracy |
±0.2% of F.S. | ±0.08% of F.S. | |||
| Parallel function |
2 parallel | - | 16 A | 80 A | - |
| 4 parallel | - | 32 A | 160 A | - | |
| Measurement points |
Current/ voltage |
Current 1 point/channel, voltage (specimen edge) 1 point/channel |
|||
| Temperature | 1 point/ channel |
2 points/ channel |
1 points/ channel |
||
- * To use the parallel function, a parallel-dedicated battery holder is required separately.
System variation
Please scroll horizontally to look at table below.
| Type | Three-chamber type |
Single-chamber type | Wide single-chamber type | Four area-chamber type | ||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||
| Interior dimensions (mm) | W 510 H 400 D 400 ×3chambers |
W 640 H 850 D 544 |
W 890 H 850 D 544 |
W 1130 H 980 D 525 |
||
| Outside dimensions (mm) | W 950 H 2022 D 1300 |
W 1250 H 1875 D 1560 |
W 1720 H 2030 D 1690 |
W 1590 H 2410 D 1954 |
||
| Standard | ADBT-5-1 | 5V/1A | 72ch （24ch/chamber） |
72ch | ー | ー |
| ADBT-5-10 | 5V/10A | 72ch （24ch/chamber） |
72ch | ー | ー | |
| ADBT-5-50 | 5V/50A | 24ch （8ch/chamber） |
24ch | ー | ー | |
| High- speed High- current |
ADBT-6-400 | 6V/400A | 3ch （1ch/chamber） |
contact us | 4ch | 4ch |
| ADBT-6-600 | 6V/600A | 3ch （1ch/chamber） |
contact us | contact us | 4ch | |
| ADBT-6-100 to ADBT-6-1600 |
6V、100A to 1600A | Please contact ESPEC or your dealer regarding chamber combinations. | ||||
- * A parallel connection (for 2-unit and 4-unit operation) is available for 5V, 10A and 5V, 50A testers.
- * Requires separate battery holder for use with parallel connection.
Features
Integrated specially designed chamber and system (Patented in Japan)
- Integrated design featuring multiple functions
- Multiple functions including performance testing, durability testing, temperature characteristic testing and impedance evaluation (tailor-made) are included in this compact tester. A single tester can flexibly meet a wide variety of testing needs.

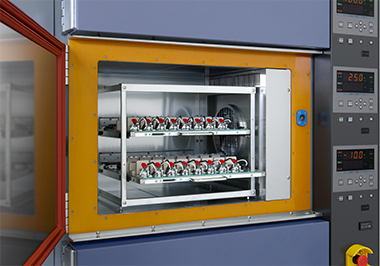

- Test area (3-chamber type)
- Three chambers individual control
- The integration of the chambers and the power system in a single structure can control each temperature for each chamber. Also, this system has drastically reduced the footprint than previous system.
- Battery holders match battery shapes for easy setup
- Power supply to battery connection is completed simply by setting batteries in a battery holder equipped with a card edge connector, and inserting the connector into the slot at the back of the inner chamber.
- Uniform temperature distribution
- Horizontal airflow circulates inside the test area, with the 3-chamber type having a horizontal air outlet and the single chamber type having a rear air outlet. In addition, the design takes into consideration the battery holder position and battery arrangement, and it ensures a uniform temperature environment even when a battery is installed.
- Battery holder provides simple setting
- ESPEC provides battery holders to accommodate various battery shapes, including coin, cylindrical, square, and laminated batteries, and according to charge-discharge conditions.
Set the battery simply by placing it in the battery fixing area on the battery holder.

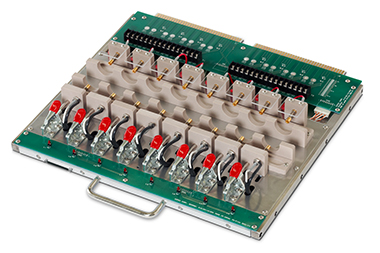

- Battery holder
(for cylindrical cell battery)
- Impedance measurement (tailor-made)
- Impedance can be measured at a specific cycle in a charge-discharge cycle test. Measurements can be taken continuously without removing the batteries, and highly reliable data can be obtained.
