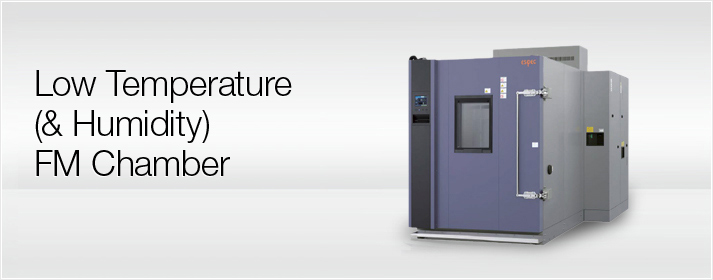

Low Temperature (& Humidity) FM Chamber

Custom Product

Supports various solar cell module tests

The solar cells used for solar power generation, which is the major player among clean energy supply sources, are exposed to a variety of different environment since they are installed outdoors. Therefore, many different types of tests are conducted for their reliability evaluation. Service life evaluation of panel modules is particularly important, and various checks ranging from analysis of causes of failure to standard tests are conducted from the development stage continuing even after the start of product supply. ESPEC satisfies these requirements with the temperature and humidity chambers with larger capacity.

The test area dimensions of the FM Chamber can accommodate changes in units of 50 mm according to the module size and number inserted.

The chamber support various IEC standard tests.

It can also be used as a temperature and humidity chamber for PID evaluation by adding insulation measures and high-voltage static charge prevention measures.

Features
  • Achieves a temperature accuracy of ±2°C and a humidity accuracy of ±5% RH on the module surface.*
  • High capacity: 3,600 L, 1200 (W) × 1500 (H) × 2000 (D) mm
  • Jig for easy handling of large modules (optional)
  • Supports insulation measures and high-voltage static charge prevention measures. (Optional)
  • Walk-in type design: take-in and take-out of large panel modules is easier.

* When carrying 10 modules with a size of 1300 (W) × 1800 (H) × 50 (D) mm (200 kg)

* Temperature of 1 point on the module surface closest to the center of the chamber (humidity near air temperature)

* With stable temperature and humidity

Test area
Test area
Temperature-Humidity control range (Model: FMS)
Temperature-Humidity control range (Model: FMS)
Main specifications
Model FMU FML FMG FMS
Temperature (humidity) control system Balanced temperature control system Balanced temperature humidity control system Balanced temperature control system Balanced temperature humidity control system
Temperature range -40°C ~ +180°C -40°C ~ +180°C -70°C ~ +180°C -70°C ~ +180°C
Humidity range - 20 ~ 95% - 20 ~ 95%
Temperature change rate -18°C ⇔ 158°C 3°C/min or more
(No specimen, average, during the test -40°C ⇔ +180°C)
-45°C⇔155°C 3°C/min or more
(No specimen, average, during the test -70°C ⇔ +180°C)
Standard dimensions
Size variation 1000 1800 2520 3600 3960 5000
W(mm)*1 1000 1000 1200 1200 1200 1500
H(mm)*1 1000 1200 1400 1500 1500 1800
D(mm)*1 1000 1500 1500 2000 2200 1850
Inside capacity(L) 1000 1800 2520 3600 3960 4995

* We can meet various customers requirements by combining temperature and humidity performance with the chamber dimensions shown above.

*1 Excluding partial protrusions.

* The specifications will be adjusted according to customer requirements for the thermal cycle test (IEC 61215 10.11, JIS C 8990), humidity freeze test (IEC 61215 10.12, JIS C 8990), and damp heat test (IEC 61215 10.13, JIS C 8990).

* This series supports hot-spot testing when combined with a solar simulator.

* These models can also support DML testing (IEC 61215 10.16, JIS C8990) when combined with the mechanical load test.

Examples

· Condensation freezing/ thermal cycle
(IEC61646 Eddition 2.0 2998-05)

Specimen: 15 panel modules of L1195 × W1335 × T36 mm

Supports the continuous operation with specimens under the condition of +85°C/85%rh for 1,000 hour

Lowest attainable temperature -60°C

· Condensation freezing/ thermal cycle
(IEC61646 Edition 2.0 2998-05)

Specimen: 15 panel modules of L1800 × W1300 × T50 mm/L1482 × H985 × T50 mm

* The height of the guide plate can be adjusted to the module size to be put in the chamber.

Lowest attainable temperature -60°C

* Reference IE61645 Edition 2.0 2998-05

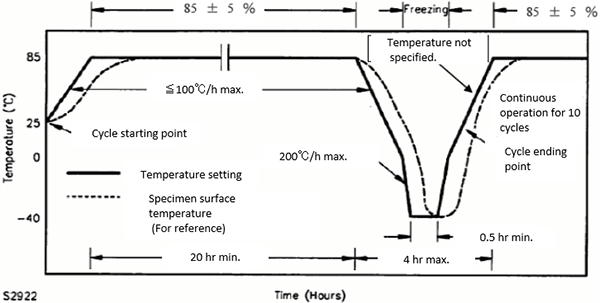

Condensation Freezing Cycle Test
Graph: Condensation Freezing Cycle Test
CAUTION

Use the following options if there is a possibility that acetic acid or phthalic acid may be generated from the specimen during operation at high temperature and humidity.

Options

  • Stainless steel evaporator
  • Drain pipe stainless steel specifications
