Industrial Ovens Temperature
Chamber with pressure relief Vent
SPH series
The standard for high temperature chambers suitable for product tests that involve the risk of explosion Equipped with safety functions including a safety panel (pressure relief vent) that can release explosion pressure safely
These are temperature chambers that deliver superior operability and temperature uniformity.
An automated fire extinguishing mechanism and other safety functions can be added upon request.
- Test category (cell tests)
-
- High temperature heating test
- Test category (module and pack tests)
-
- Thermal cycle (thermal shock) test
- High temperature heating test
- Storage test
- Supported test standards
-
- UN ECE R100-02.PartⅡ
- UN38.3
- JISC8712
- JISC8714
- UL1642
- Electrical Appliance and Material Safety Act
- ISO12405-1
- ISO12405-2
- IEC62660-2
Features
Equipped as standard with safety panels (pressure relief vents) that reduce explosion pressure.
In case of an explosion, the safety panel (pressure relief vent) releases the explosion pressure out of the chamber from the top.
The panel is equipped as standard with a one-touch lock-type panel lever.
The panel lock system uses a one-touch lock-type panel lever that securely locks the panel and chamber simply by rotating the panel lever 90°. This prevents errors in locking the panel and enables safe tests. In the event that the panel is not locked securely, the panel lock detection switch on the chamber side prevents the heater and fan from operating even when the start switch is operated.

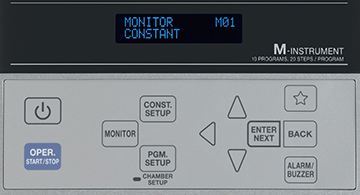

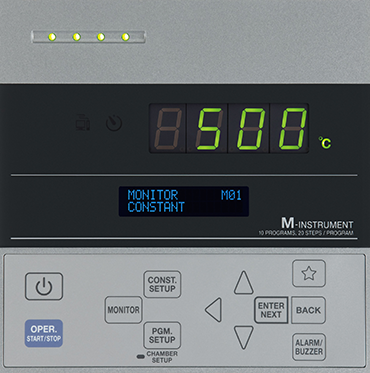

User-friendly Standard Instrumentation
Standard instrumentation is provided which allows operation both with a constant operation mode and with program operation that can set operations such as automatic start and stop.
Easy setup with on-screen display
Employs interactive settings for ease of ues.Text can be displayed and entered in Japanese or English alphanumeric characters.
Remote system operation using a web browser
By combining the system with the OnlineConverter and optional communication function, it is possible to check the system status and operate the system on a web browser screen from a remote location.
Specifications
| Model | Temperature range | Interior dimensions/Outside dimensions |
|---|---|---|
| SPH(H)-102 | Ambient temp. +20°C to +200°C (392°F) [+300°C for SPHH models] |
W450 × H450 × D450mm ／ W1040 × H1260 × D635mm |
| SPH(H)-202 | W600 × H600 × D600mm ／ W1190 × H1370 × D785mm | |
| SPH(H)-302 | W800 × H800 × D800mm ／ W1500 × H1715 × D1065mm | |
| SPH(H)-402 | W1000 × H1000 × D1000mm ／ W1730 × H1800 × D1775mm |
Larger capacity type
Large-size high temperature chambers
Large types for testing of large-size battery packs and similar products are also available. We have extensive experience in producing custom systems according to the customer’s product size.
