  • Overview of Equipment
  • Features

Worldwide applications

ESPEC's Temperature Chambers are suitable for a broad range of applications from high-temperature testing, to heat treatment or drying for production lines.
Several volumes are available in horizontal (PH series) or vertical (PV series) models.

High performance chamber

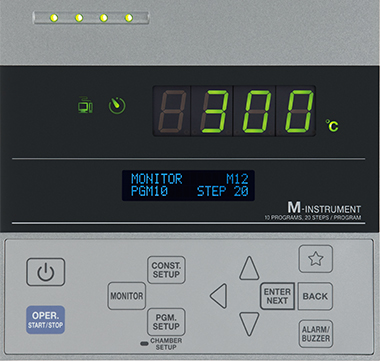

A temperature-indication controller with an advanced PID operation, and an originally developed chamber configuration provide unmatched oven performance. Temperature uniformity, temperature constancy, temperature heat-up rate, and temperature recovery time are performed with the upmost reliability.
Wide model selection (PH series)
We provide a total of 16 ovens with combination of temperature range, capacity, and instrumentation.
A space-saving upright chamber (PV series)
Components are incorporated into the top portion of the vertical chamber, reducing installation space by 20 to 60% (comparison with conventional model). Increases productivity on the production line, and saves laboratory space.
Specifications
Model Temperature range Inside / Outside dimensions (mm)
PV(H)-212 (Ambient temp. +20)°C to +200°C
((Ambient temp. +20)°C to +300°C)
W600×H600×D600 / W770×H1200×D925
PV(H)-222 W600×H900×D600 / W770×H1500×D925
PV(H)-232 W600×H1200×D600 / W770×H1800×D925
PV(H)-332 W800×H1200×D800 / W1030×H1800×D1145
PH(H)-102 (Ambient temp. +20)°C to +200°C
((Ambient temp. +20)°C to +300°C)
W450×H450×D450 / W1040×H820×D635
PH(H)-202 W600×H600×D600 / W1190×H970×D785
PH(H)-302 W800×H800×D800 / W1500×H1210×D1065
PH(H)-402 W1000×H1000×D1000 / W1730×H1480×D1275
