Environmental Stress Chamber AR series

Home : Products Information : Environmental Test Chambers

PDF1.0MB

Advanced reliability

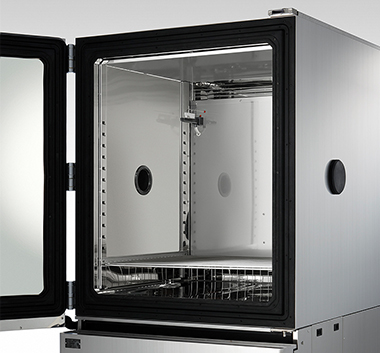

ESPEC's Environmental Stress Chambers can withstand heat loads generated by the specimen, improve temperature change rates, and provide expanded ranges for temperature and humidity.

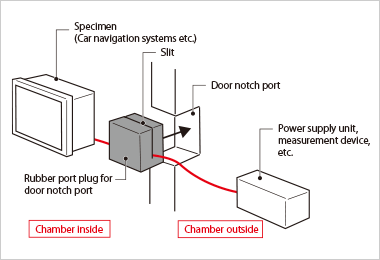

Each chamber is also equipped with a specimen temperature control function to meet stringent testing demands typically required for automotive parts and mobile products.

Highly uniform temperature distribution

Highly uniform temperature distribution minimizes variations in test results over multiple specimens.

International safety standards

Conforms to ISO12100-1, -2, ISO14121, and to CE marking requirements based on EU directives: Low voltage directive, EMC directive, machinery directive, and pressure equipment directive.

Specifications

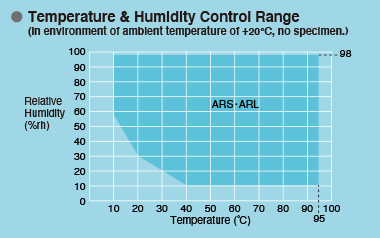

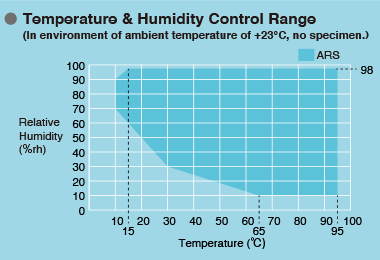

Model	Temperature & humidity range	Inside / Outside dimensions (mm)
ARL-0680	-45 to +180°C [-49 to +356°F] / 10 to 98% rh	W850×H1000×D800 / W1050×H1955×D1805
ARL-1100	-45 to +180°C [-49 to +356°F] / 10 to 98% rh	W1100×H1000×D1000 / W1300×H1955×D2005
ARS-0680	-75 to +180°C [-103 to +356°F] / 10 to 98% rh	W850×H1000×D800 / W1050×H1955×D1805
ARS-1100	-75 to +180°C [-103 to +356°F] / 10 to 98% rh	W1100×H1000×D1000 / W1300×H1955×D2005
ARU-0680	-45 to +180°C [-49 to +356°F]	W850×H1000×D800 / W1050×H1955×D1805
ARU-1100	-45 to +180°C [-49 to +356°F]	W1100×H1000×D1000 / W1300×H1955×D2005
ARG-0680	-75 to +180°C [-103 to +356°F]	W850×H1000×D800 / W1050×H1955×D1805
ARG-1100	-75 to +180°C [-103 to +356°F]	W1100×H1000×D1000 / W1300×H1955×D2005
