Wind

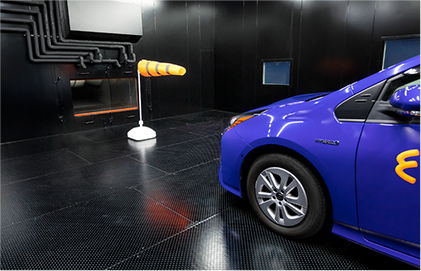

The fan module helps to replicate airflow surrounding a vehicle in actual driving.
Wind blows toward the vehicle from the front while driving.
The All Weather Simulation Chamber simulates driving conditions, combining the temperature and humidity environment with the environmental module to easily replicate vehicle driving.
Test category
- Vehicle wind speed test
- Rainfall test while driving
- Snow adhesion test while driving
Test devices
- Vehicle body
- Head light
- Automotive sensors
- Windshield
etc.
Keywords
- Vehicle wind speed test
- Rainfall test while driving
- Snow adhesion test while driving
- Vehicle body
- Head light
- Automotive sensors
- Windshield

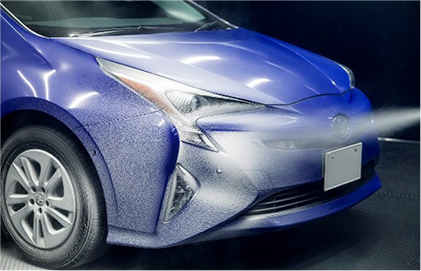

POINT 01Can be combined with the snow generator module
If it snows while driving, snow can be blown from the front, accumulating even on the sensor section at the bottom of the vehicle.
The airstream fan module can be combined with the snow generator module to evaluate performance with blowing snow while driving.

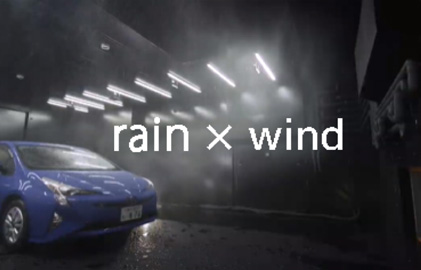

POINT 02Can be combined with the rain generator module
Using the rain generator module on its own, we can create environments when a car is stopped or parked. In many cases, however, sensors are used while driving. By combining the rain generator module with the airstream fan module, we can simulate driving during rainy conditions for evaluation.
Specifications
| Item | Specifications |
|---|---|
| Nozzle sizes | ①W1,400×H700mm ②W1,400×H300mm |
| Wind speed | 5～50km/h（for nozzle size ①） 10～100km/h（for nozzle size ②） |
| Remarks | Test area temperature range: −20℃～+70℃ |
