Dynamic Environment / Complex environmental simulation
ESPEC can create dynamic environments and Complex environmental simulation.

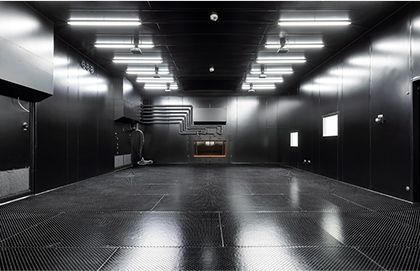

The All Weather Simulation Chamber accurately controls and varies seven environmental factors to create dynamic environments (weather environments that are constantly changing).
Combining these seven environmental factors makes multiple weather environment testing possible.
Test category
- Temperature+Rain
- Temperature+Snow adhesion
- Temperature+Fog
- Temperature and humidity+Solar
- Temperature and humidity+Vehicle wind speed
- Temperature+Vehicle wind speed+Rain
- Temperature+Vehicle wind speed+Snow adhesion
- Temperature+Fog+Solar
etc.
Test devices
- Automotive parts
- Automotive sensors
- Vehicle
- Outdoor electrical equipment
etc.
Keywords
- Dynamic environment
- Temperature+Rain
- Temperature+Snow adhesion
- Temperature+Fog
- Temperature and humidity+Solar
- Temperature and humidity+Airstream fan
- Temperature+Airstream fan+Rain
- Temperature+Airstream fan+Snow adhesion
- Temperature+Fog+Solar
- Automotive parts
- Automotive sensors
- Vehicle
- Outdoor electrical equipment
POINT 01Dynamic environments can be created

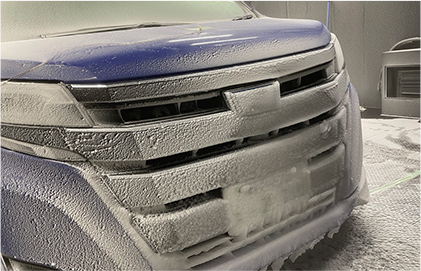

In actual environments, snow does not continue to fall at a constant rate. Rather, it changes from moment to moment. In the All Weather Simulation Chamber, dynamic environments (weather environments that are constantly changing) that change from rain to sleet and snow can be created for evaluation.
This makes it possible to evaluate snow and ice that accumulates on sensors, wipers, headlights, etc.

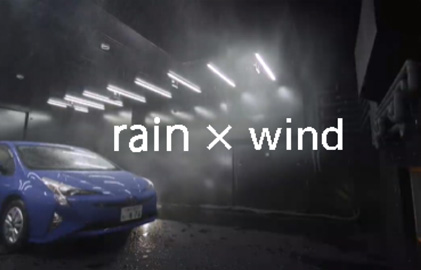

POINT 02Composite testing with the rain generator module + airstream fan module
Using the rain generator module on its own, we can created environments when a car is stopped or parked. In many cases, however, sensors are used while driving. By combining the rain generator module with the airstream fan module, we can simulate driving during rainy conditions for evaluation.

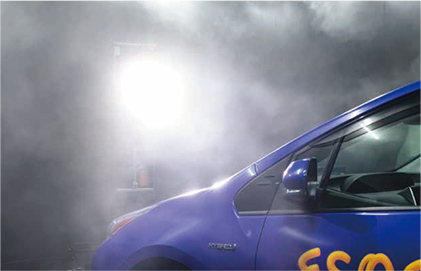

POINT 03Composite testing with the fog generator module + Solar module
In foggy conditions, it can be difficult to recognize pedestrians in front of you. Add the setting sun or other backlighting, and visibility is even worse. The Solar module can be combined with the fog generator module to create backlighting in fog for evaluation.
