Temperature and humidity
High-powered temperature and humidity control is possible with an allowable heat load of up to 50kW.

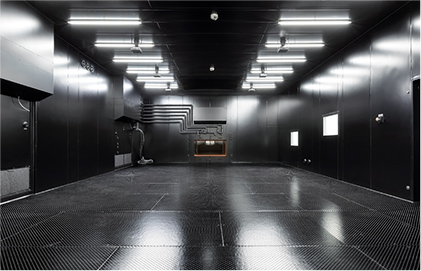

Just as with the usual temperature and humidity chamber, temperature and humidity control is available in the All Weather Simulation Chamber.
Capable of a max. heat load of 50kW and powerful control capabilities, this module can even withstand the heat of the solar module.
Test category
- Temperature and humidity test
- Thermal cycle test systems
- Low temperature test
Test devices
- Automotive sensors
- Automotive parts
- Vehicle
etc.
Keywords
- Temperature tests
- Humidity
- Thermal cycle test systems
POINT 01Support for high heat loads

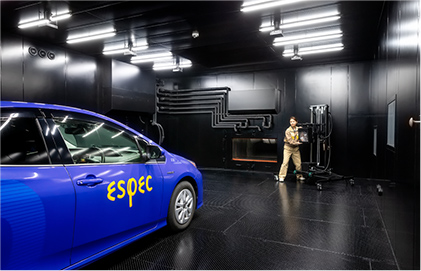

The powerful humidity and temperature control capabilities that allows the All Weather Simulation Chamber to create weather environments is capable of a heat-generation load of 50kW (at -5℃ to +65℃).
POINT 02Creates uniform air humidity and temperature throughout the entire chamber

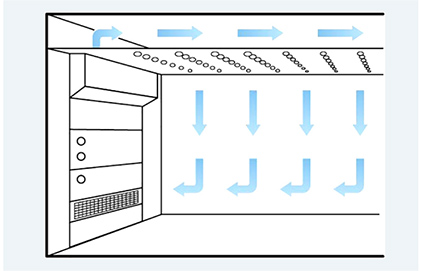

The full-ceiling air ducts can create uniform air humidity and temperature throughout the entire chamber.
POINT 03Black chamber interior

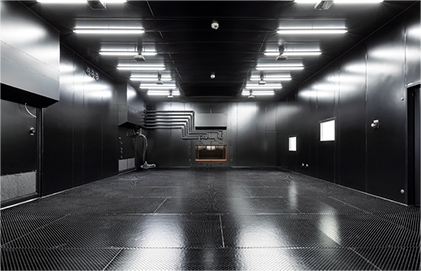

The interior of the test area is painted black to suppress diffused reflection of solar for accurate fog evaluation.
Specifications
| Item | Specifications |
|---|---|
| Test area temperature range | ‐40℃～+80℃ |
| Humidity range | 10～95％rh（at +10℃～+80℃） |
| Dimensions inside test area | W6,000×H3,000×D9,000mm |
| Allowable heat load | 50kW max.（at -5℃～+65℃） |
