Fog
It is possible to reproduce environments with poor visibility due to fog.
When fog forms in actual environments, visibility distance is reduced, making it impossible to see even a few dozen meters ahead.
A visibility distance of 15m or less can be reproduced during fog tests, allowing the sensitivity of sensors and cameras to be evaluated.
Test category
- Thick fog test
- Visibility distance evaluation
Test devices
- Image sensors
- Automotive sensors
- Room mirror monitor
- Head light
etc.
Keywords
- Thick fog
- Light fog
- Automotive sensors
- Visibility distance evaluation

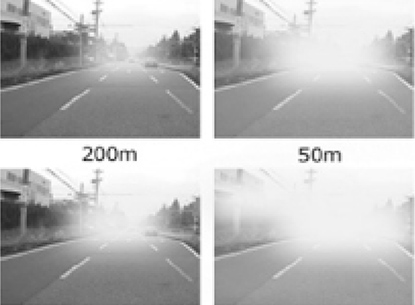

POINT 01Visibility distance can be controlled to 15m or less
The fog test creates visibility distances of 15m or less. It is also possible to simulate environments with thick fog.
Doing so is useful for evaluating the sensitivity of sensors and cameras.
POINT 02Can be combined with the solar module
In foggy conditions, it can be difficult to recognize pedestrians in front of you.
Add the setting sun or other backlighting, and visibility is even worse.

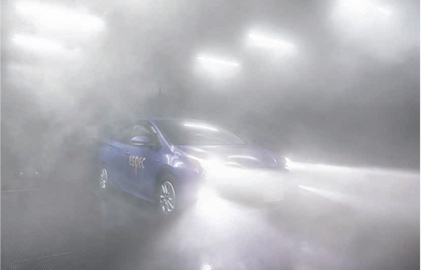

The fog generator module can be combined with the solar module to create backlighting in fog for vehicle evaluation.
Specifications
| Item | Specifications |
|---|---|
| Visibility distance in fog | 15m or less |
| Fog area | Approx. 8m3 or less |
