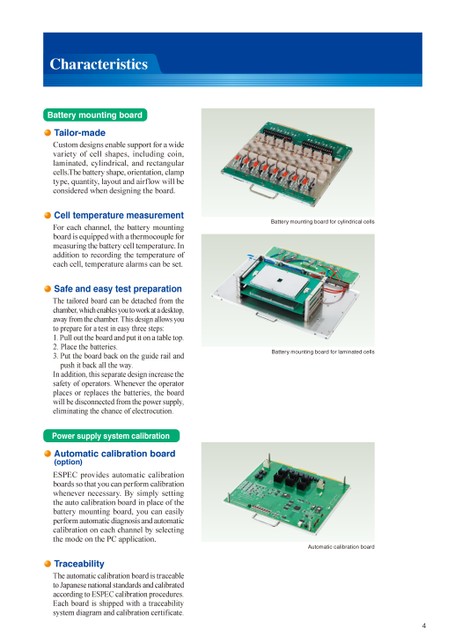

CharacteristicsBatterymountingboardTailor-madeCustomdesignsenablesupportforawidevarietyofcellshapes,includingcoin,laminated,cylindrical,andrectangularcells.Thebatteryshape,orientation,clamptype,quantity,layoutandairflowwillbeconsideredwhendesigningtheboard.CelltemperaturemeasurementForeachchannel,thebatterymountingboardisequippedwithathermocoupleformeasuringthebatterycelltemperature.Inadditiontorecordingthetemperatureofeachcell,temperaturealarmscanbeset.SafeandeasytestpreparationThetailoredboardcanbedetachedfromthechamber,whichenablesyoutoworkatadesktop,awayfromthechamber.Thisdesignallowsyoutoprepareforatestineasythreesteps:1.Pullouttheboardandputitonatabletop.2.Placethebatteries.3.Puttheboardbackontheguiderailandpushitbackalltheway.Inaddition,thisseparatedesignincreasethesafetyofoperators.Whenevertheoperatorplacesorreplacesthebatteries,theboardwillbedisconnectedfromthepowersupply,eliminatingthechanceofelectrocution.PowersupplysystemcalibrationAutomaticcalibrationboard(option)ESPECprovidesautomaticcalibrationboardssothatyoucanperformcalibrationwhenevernecessary.Bysimplysettingtheautocalibrationboardinplaceofthebatterymountingboard,youcaneasilyperformautomaticdiagnosisandautomaticcalibrationoneachchannelbyselectingthemodeonthePCapplication.TraceabilityTheautomaticcalibrationboardistraceabletoJapanesenationalstandardsandcalibratedaccordingtoESPECcalibrationprocedures.Eachboardisshippedwithatraceabilitysystemdiagramandcalibrationcertificate.BatterymountingboardforcylindricalcellsBatterymountingboardforlaminatedcellsAutomaticcalibrationboard4
| <
|
> |
>>
